Environmental monitoring

Pressurised environments

Measuring volatile compounds

Hyperbaric marine environments

NPL can analyse a wide variety of volatile compounds (hydrocarbons, oxygenated hydrocarbons, halocarbons, siloxanes and terpenes) in air sampled from both hyperbaric marine diving environments and off-gassing from pressurised marine equipment, such as umbilicals. There is a real danger of contaminants entering the atmosphere of these hyperbaric environments, e.g. from paint, thinners and cleaning fluids used during routine maintenance and periodic refurbishment work. The toxicity of these contaminants is greatly enhanced under pressure. It is therefore essential that these compounds can be detected and measured.

Pressurised aircraft cabin air

NPL can analyse samples of aircraft cabin air for a variety of compounds of concern. Examples include CO, CO2 and O3 as well as a range of VOCs associated with an array of sources, including aircraft engine emissions.

Analysis capabilities

NPL has more than 15 years of experience in rapid analysis and reporting results to verify compliance with occupational workplace exposure limits (HSE EH40/2005), occupational exposure limits for hyperbaric conditions (HSE EH75/2) and associated ISO guidelines. NPL has developed methods to identify a wide range of compounds and can perform any or all parts of the full analysis of hyperbaric gas samples:

GC-FID analysis

These compounds are quantified using GC-FID analysis (gas chromatography – field ionisation detection) and NPL reference materials, prepared in house gravimetrically and traceable to national standards. Compounds with an amount fraction greater than 1 nmol/mol will be reported. Typical uncertainties are 2 - 5 % (k = 2).

Class of compound

    Compounds

Hydrocarbons

ethane, ethene, propane, propene, i-butane, n-butane, acetylene, trans-2-butene, 1-butene, cis-2-butene, 2-methyl-butane, n-pentane, 1,3-butadiene, trans-2-pentene, 1-pentene, 2-methyl-entane + 3-methyl-pentane, n-hexane, isoprene, n-heptane, benzene, 2,2,4-trimethyl-pentane, toluene, n-octane, ethyl-benzene, m+p-xylene, o-xylene, 1,3,5-trimethyl-benzene, 1,2,4-trimethyI-benzene, 1,2,3-trimethyl-benzene, *i-butylene, *i-heptanes, *unknown C8, *unknown C9, *C9/C10 aromatics

Terpenes

±α-pinene, ±β-pinene, limonene

Halocarbons

trichloroethylene, tetrachloroethylene

* Quantified using the response factor of a similar compound contained in the reference gas mixtures. 

TD-GC-FID-MS analysis

All the compounds can be quantified using TD-GC-FID-MS analysis (thermal desorption - gas chromatography - flame ionisation detection - mass spectrometry). Samples are transferred to suitable sorbent tubes for this analysis. Calibration is achieved using a multi-point standard calibration derived from gravimetric liquid standards prepared by NPL. Typical uncertainties are 10 - 25 % (k = 2). Unknown compounds will also be reported and identified if possible.

Class of compound

Compounds

Hydrocarbons

propyl benzene, 1-ethyl-3-methylbenzene, 1-ethyl-4-methylbenzene, 1-ethyl-2-methylbenzene, 2-methyl-1-hexene, acetonitrile (other), THF (oxygenated hydrocarbons)

Oxygenated hydrocarbons

acetone, ethanol , 2-methyl-2-propanol, *ethanal (acetaldehyde), methyl acetate, 2-*propenal (acrolein), *2-butenal, *2,3-butanediol, vinyl acetate, ethyl acetate, isopropyl acetate, 1-butanol, butan-2-one (MEK), isopropyl alcohol (IPA), methyl isobutyl ketone (MIBK), 2-butoxyethanol

Halocarbons

dichloromethane, chloroform, 1,2-dichloroethane

Siloxanes

*hexamethylcyclotrisiloxane, octamethylcyclotetrasiloxane

* Quantified using the response factor of a similar compound contained in the liquid standards.

GC-TCD/PDID analysis

Using GC-TCD (gas chromatography – thermal conductivity detectors) with a range of carrier gases and detectors, the composition and make up of balance gases in a diving atmosphere, chamber or tank can be analysed.  Presence of other permanent gases that are harmful, yet abundant at lower concentrations, can also be tested for. Uncertainties are typically under 2 % (k = 2).

Class of compound

Compounds

Permanent gases

carbon monoxide, carbon dioxide, methane, helium, nitrogen and oxygen.

Representative sampling

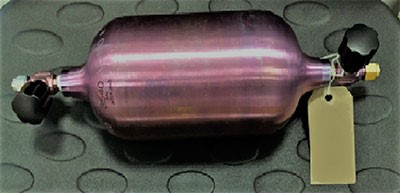

NPL experts are at hand to provide advice on the best techniques for obtaining representative gas samples and can provide appropriate sample collection cylinders (typically double-ended of 1 litre volume). These are specifically designed for hyperbaric sampling and come with specialist passivation to avoid sample decomposition. Fittings and other connectors can be provided on request.



Don’t see what you are looking for? Our diverse skill set enables us to provide bespoke solutions. Please contact us to discuss your requirements.
