Access NPL’s world-leading terahertz facilities

This facility will also allow us to push the boundaries on many metrology and testing concepts for next generation wireless communications specially at sub-THz and beyond.

Dr Akram Alomainy - QMUL

NPL is home to the EPSRC THz facility, serving the UK academic community. Through EPSRC funding, you can apply to use NPL’s THz facilities and services which include:

  • Time-domain spectroscopy
  • Frequency-domain spectroscopy
  • Device characterisation
  • THz communications

The equipment and resources of the THz facility are listed below and can be accessed through the EPSRC applications process.

Please contact us to discuss proposed work or if you have any questions.

Contact us

Time-domain spectroscopy

Time-domain spectroscopy

Transmission time-domain spectroscopy

  • Equipment: TeraFlash Pro (Toptica)

  • Measurement: Frequency range 0.1 – 6 THz, Frequency resolution 1 GHz

  • Measurement with either collimated or focused beam

Time-domain spectroscopy imaging extension

  • Equipment: operates with TeraFlash Pro (Toptica) Time-domain spectroscopy
  • Measurement: Transmission or reflection
  • Measurement area: 15 x 15 cm

Reflection time-domain spectroscopy

  • Equipment: Tera K15 (Menlo) Frequency
  • Measurement: Frequency range 0.1 – 5 THz, Frequency resolution 5 GHz




Frequency-domain spectroscopyFrequency-domain spectroscopy

Transmission frequency-domain spectroscopy

  • Equipment: TeraScan (Toptica)
  • Measurement: Frequency range 0.05 – 2 THz, Frequency resolution 50 MHz
  • Measurement with either collimated or focused beam

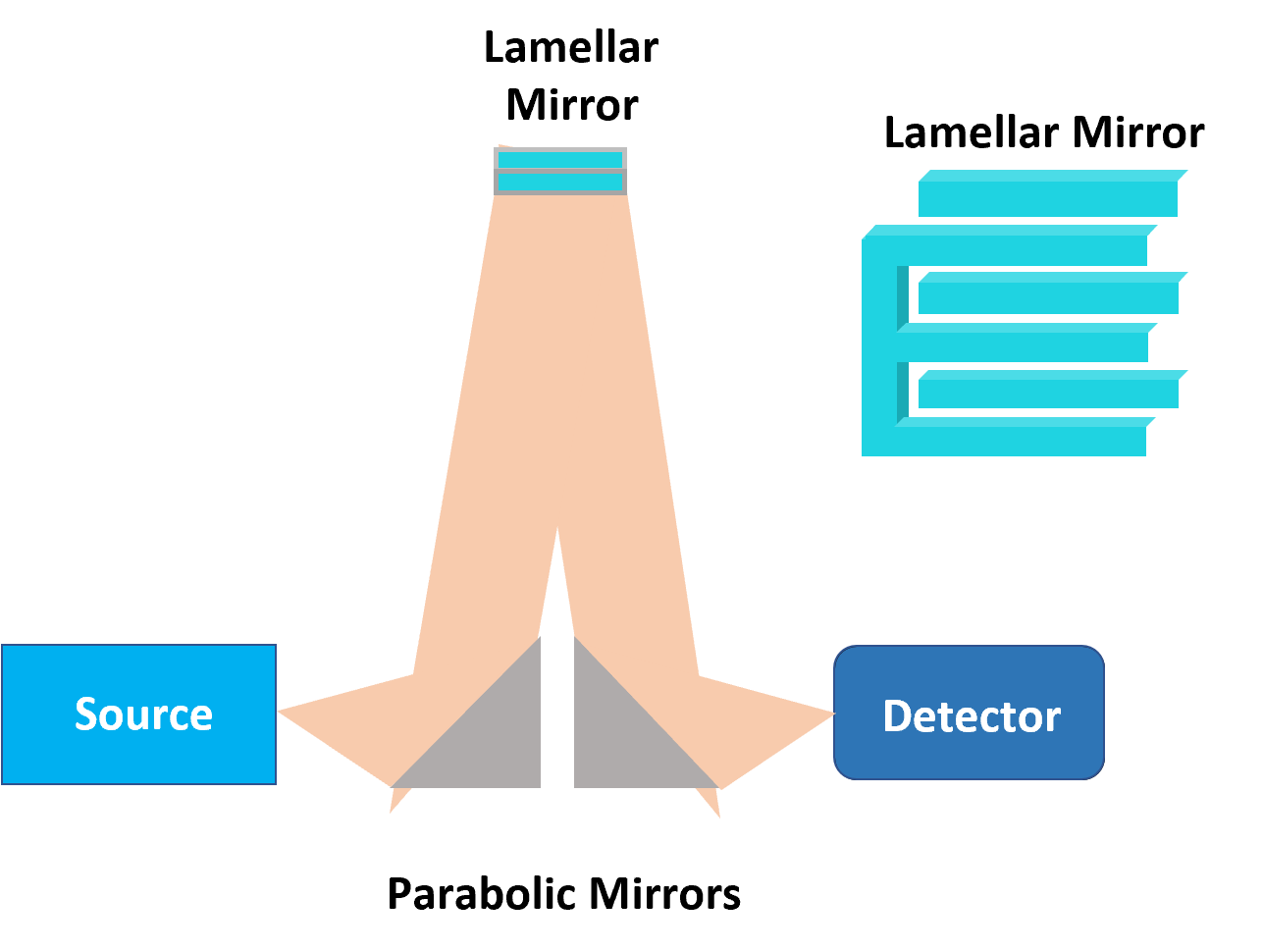

Broadband spectral measurements – lamellar interferometer Broadband spectral measurements

  • Measurement: Frequency range 0.05 – 10 THz, Frequency resolution 1 GHz
  • Emitter broadband spectrum (requires calibrated detector)
  • Detector spectral responsivity (requires calibrated emitter)

Device characterisation

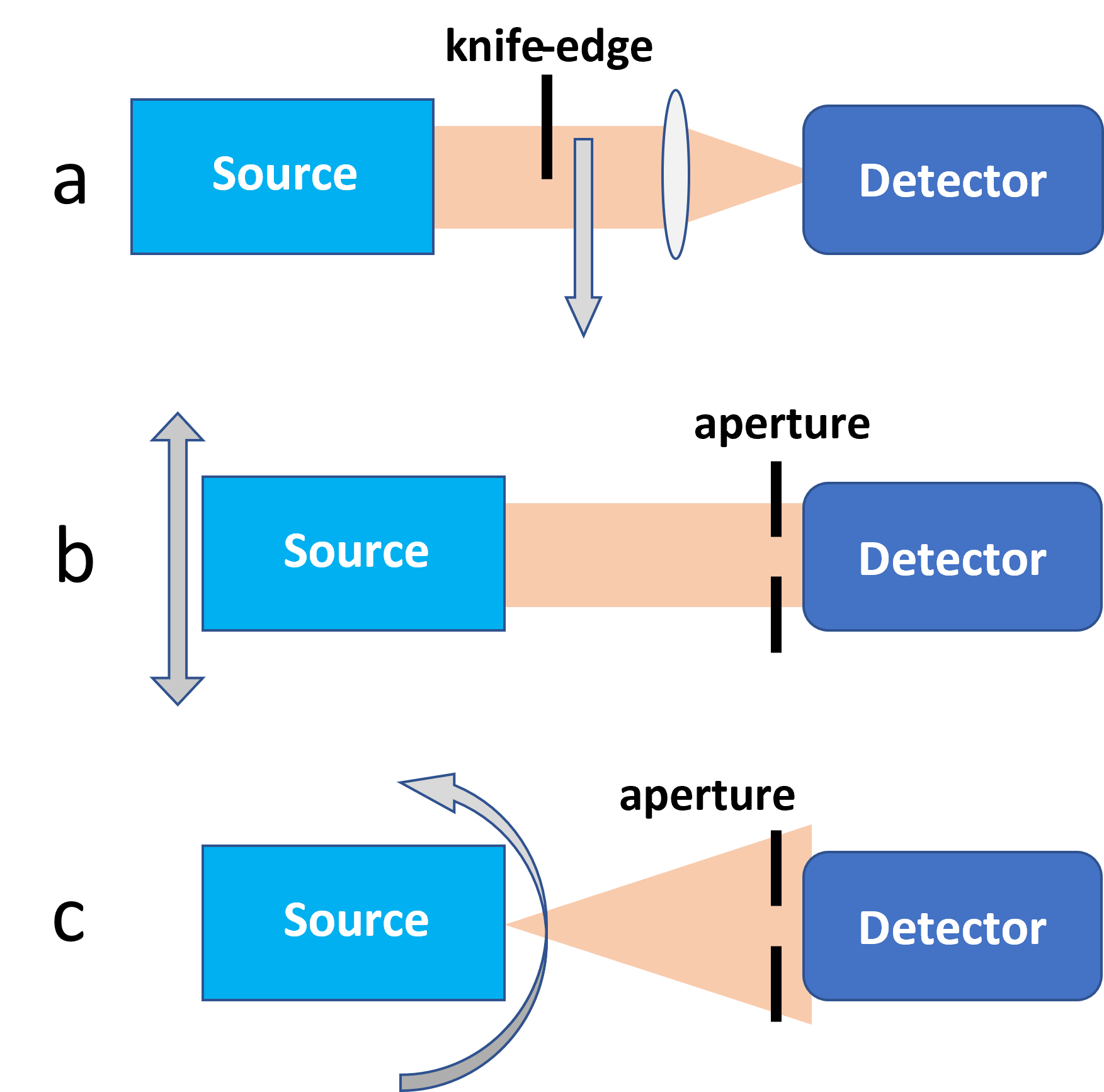

Emitter beam profile Emitter beam profile

  • Operates with pyroelectric detector and Golay cell
  • Measurement: Frequency range 0.1 – 10 THz
  • Measures angular beam profile
  • Angular resolution: 1°
Emitter beam

THz power

  • Equipment: calibrated THz power detectors - Pyroelectric detector (SLT) and Golay cell (Tydex)
  • Measurement: Frequency range 0.1 – 10 THz

Ti-sapphire mode-locked laser Ti-sapphire mode-locked laser

  • Equipment: Femtosource mode-locked Ti-sapphire laser and
    coherent Verdi pump laser
  • 20 fs pulse length
  • Low noise, high stability

Vector network analyser (VNA)

  • Equipment: Keysight PNA-X VNA
  • Configured to measure:
  • metallic waveguides
    • on-wafer substrates
    • materials characterisation
    • + VDI power meter
Frequency (GHz) Waveguide On-wafer Material characterisation using MCK
50 – 75 / V-band
60 – 90 / E-band
75 – 110 / W-band
110 – 170 / D-band
140 – 220 / G-band
500 – 750
  • Waveguide measurement (S-parameters, power level)
  • On-wafer probing (S-parameters, power level)
  • Material measurement using material characterisation kit (MCK)
  • A separate power meter can measure power in all the above bands

Metallic waveguide measurements Metallic waveguide measurements

  • Instrumentation: VDI extender heads
  • Primary standards: NPL-designed waveguide lines (¾ wavelength)
  • Calibration: NPL-invented ¾-wave Thru-Reflect-Line (TRL) technique
  • Uncertainty: evaluated using Guide to expression of Uncertainty in Measurement (GUM)
  • Traceability: to SI via International Bureau of Weights & Measures (BIPM)

On-wafer measurements Ti-sapphire mode-locked laser

  • Equipment: MPI THz manual probe station with state-of-the-art system enabling accurate on-wafer probing to 750 GHz
  • Thermal chuck allowing measurement over temperature from 25 °C to 150 °C
  • Different testing boundaries: metal, absorbing materials, ceramic
  • G-S-G probes (with integrated bias-T) and calibration substrates available

Materials measurement using material characterisation kits (MCKs) Materials measurement using material characterisation kits

  • MCK is effectively a guided free-space technique
  • Sample clamped between 2 corrugated horn antennas
  • Horn operates in HE11 mode (ultra-low loss), launching 98 % pure Gaussian beam
  • Compared to conventional free-space technique, MCKs are more compact and have less stringent requirements on alignment
  • Good agreement achieved between MCK and TDS

Power measurement using VDI power meter

  • Equipment: VDI PM5 – a popular commercial power meter for applications from 75 GHz to > 3 THz
  • primary power standards up to 170 GHz are available, providing traceability to SI, through waveguide-based micro-calorimeters

Power measurement using VDI power meter

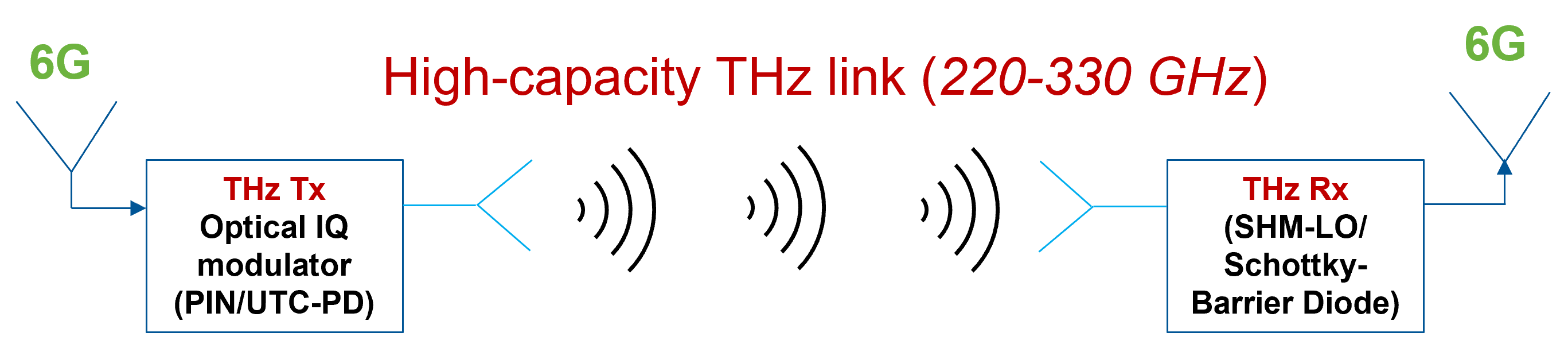

THz wireless communications

THz communications testbed   Ti-sapphire mode-locked laser

Equipment includes:

  • PIN and UTC photodiodes for THz transmitters
  • High-bandwidth optical IQ modulator with linear RF amplifiers
  • Arbitrary waveform generator
  • Subharmonic mixer (SHM) and Schottky-barrier diode (SBD) for THz receivers
  • Real-time oscilloscopes
  • Digital Signal Processing (DSP) expertise for higher-order modulation formats

Please contact us to discuss proposed work or if you have any questions.

Contact us

NPL’s EPSRC THz facility provides access to state-of-the-art THz facilities as well as collaborative THz research opportunities with outstanding scientists at NPL. I believe the EPSRC THz facility at NPL will play a key role for the UK to lead the advancement of THz sciences by collaborating with other institutions domestically and internationally using its enormous THz research capacity.

Dr SaeJune Park - QMUL

Lead researcher

Mira Naftaly

Principal Scientist

Dr Mira Naftaly joined NPL in 2008, where she is a Senior Research Scientist leading the area of Terahertz measurements and applications.

Mira is the technical lead scientist of the EPSRC Terahertz Facility.
